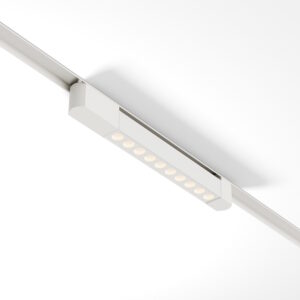

LED track light T-Line linear

LED track light T-Line linear is an energy saving, low maintenance and easy to install track luminaire suitable for a 3-phase track. The T-Line has different powers of 14-50W. The light beam of the luminaire is 90 degrees and the color temperature is 4000K.

Body color: white

Uses: Caffees, Commercial spaces, Gallerys, Hotels, Indoors, Living spaces, Museums, Offices, Restaurants, Showrooms

Colour	White
Material	Aluminium, PVC
Measurements	11x60x1500mm, 11x60x600mm
IP class	IP20
Beam angle	90°
Power (W)	1500mm - 35, 40, 45, 50, 600mm - 14, 16, 18, 20
Input power (V)	220-240V
Frequency	50-60Hz
PF	>0.9
CRI	80
Dimmable	No
LED module	SMD
Lumens (lm)	1500mm - 5600, 6400, 7200, 8000, 600mm - 2240, 2560, 2880, 3200
Luminaire’s efficiency (lm/W)	160
Energy class	C
Colour temperature (K)	4000K
Luminaire lifespan	50 000h
Operating temperature	-25°C ... +60°C
Installation type	3-phase track
Certificates	CE, RoHS
Warranty	5 years
